Comprehensive crusher
Wood comprehensive crusher is an efficient and multifunctional wood processing equipment, which is widely used in wood processing, furniture manufacturing, building decoration and other industries.
Its main features include:

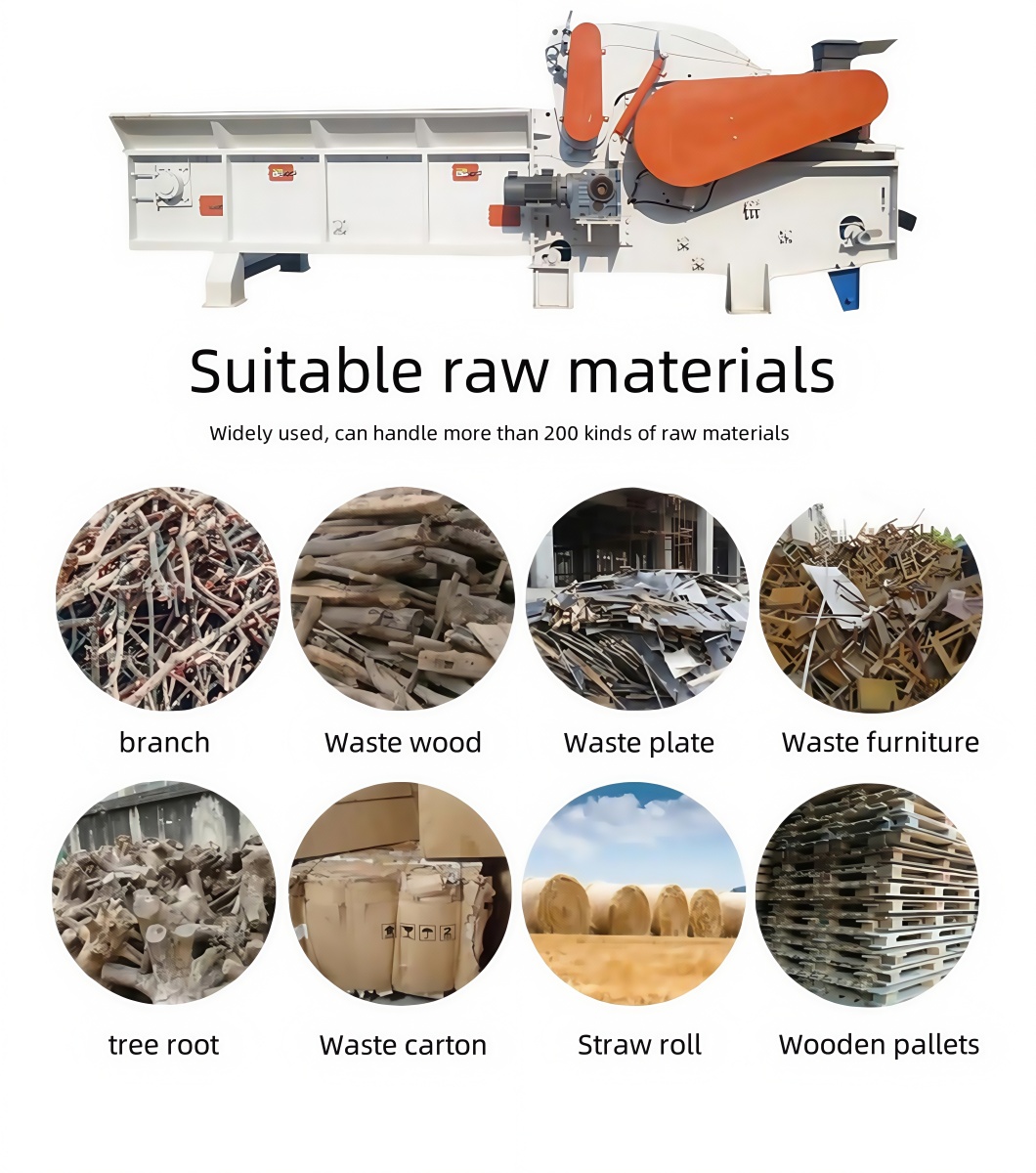

Wide applicability: it can crush all kinds of wood, such as stumps, roots, trunks, branches, etc., and can even be used to crush packaged straws.
High efficiency and stability: the equipment has the advantages of compact structure, simple operation and convenient maintenance, good crushing effect, high stability and strong reliability.
Flexible adjustment: according to the demand, the shape of the finished product can be adjusted freely from sawdust, granular to flaky to meet different production needs.
Working principle:

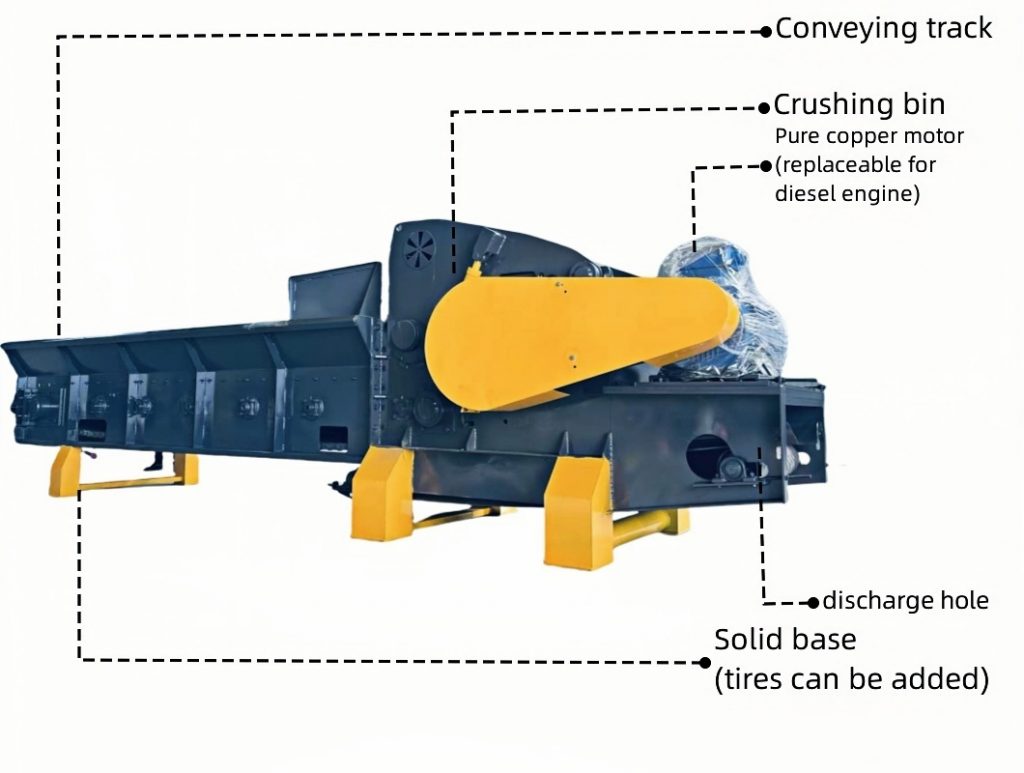

The machine consists of feed inlet, crushing chamber, power and control system.
Wood enters from the inlet and is quickly broken by the interaction between the high-speed rotating blade and the fixed blade. The crushed wood is separated by a screen to achieve different crushing effects and meet diversified needs.
This equipment is not only simple in structure, convenient to maintain, but also high in crushing efficiency. It is an ideal choice for wood processing, forest harvesting and other places. By adjusting the screen, the size of wood crushing can be easily controlled and multi-functional applications can be realized.
| Model | 215 | 216 | 218 | 2113 |
| Inlet size(H*W) | 160*400 | 230*500 | 300*680 | 450*700 |
| Blades number | 2pcs | 2pcs | 2pcs | 2pcs |
| Knife roller speed | 592turn | 590turn | 650turn | 500turn |
| Max. Diameter | 160mm | 160mm | 230mm | 450mm |
| Wood chip size | 30mm | 30mm | 30mm | 38mm |
| Capacity | 3-4t | 7-8t | 12-15t | 15-30t |
| Main motor power | 45kw | 55kw | 90-110kw | 220-250kw |
| Feed roller motor power | 2.2-3kw | 2.2-3kw | 4-5kw | 7.5+7.5kw |
| Oil pomp motor power | 1.5*1kw | 1.5*1kw | 1.5*1kw | 3*1kw |
| Weight | 2990kg | 4070kg | 7000kg | 11840kg |
| Outline Dimension | 1470*1550*970mm | 1800*1900*1210mm | 2200*2150*1500mm | 3670*2517*2050mm |
| Conveyor motor power | 3kw | 3kw | 3kw | 3kw |

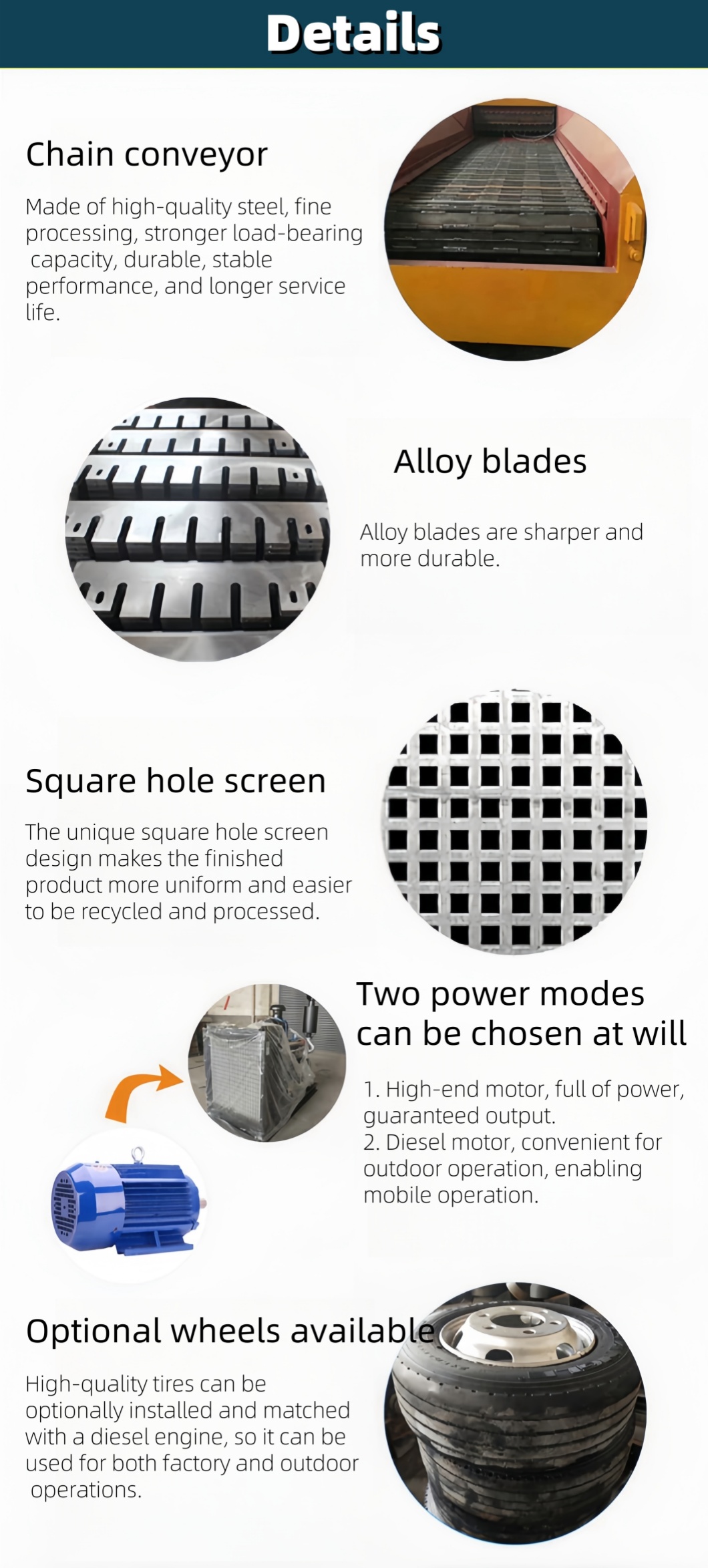

Product Details

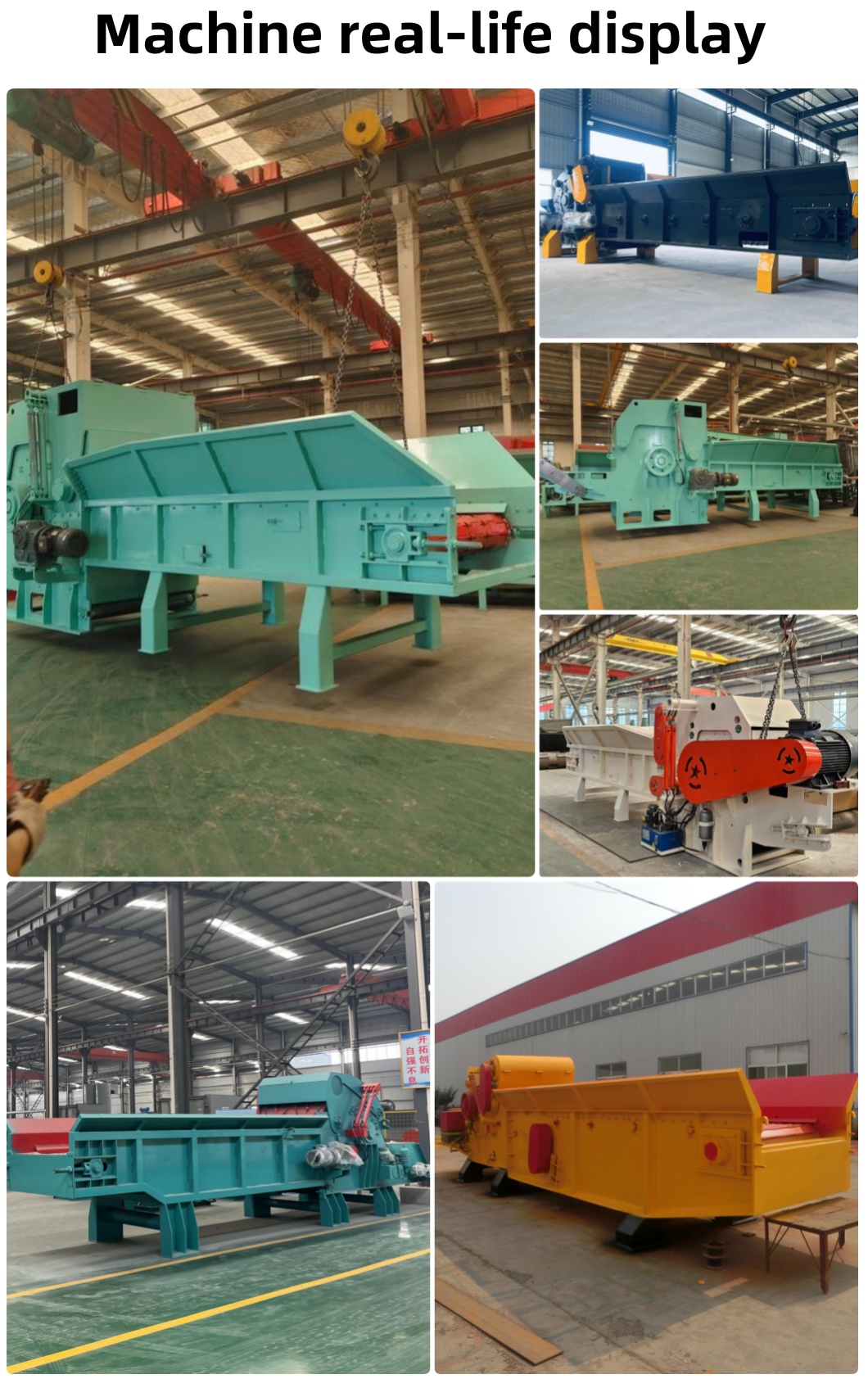

Showcase Products

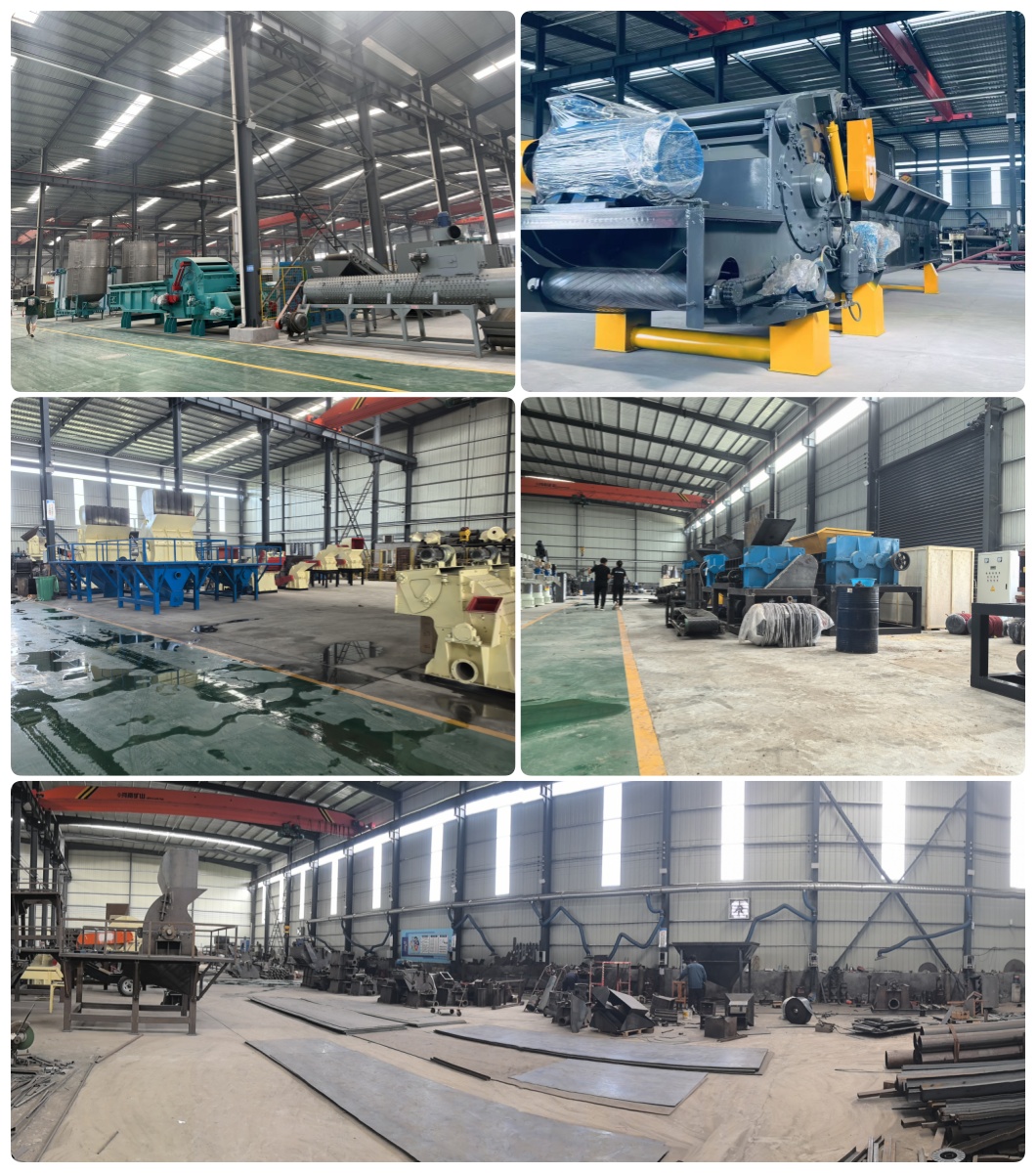

Factory Showcase

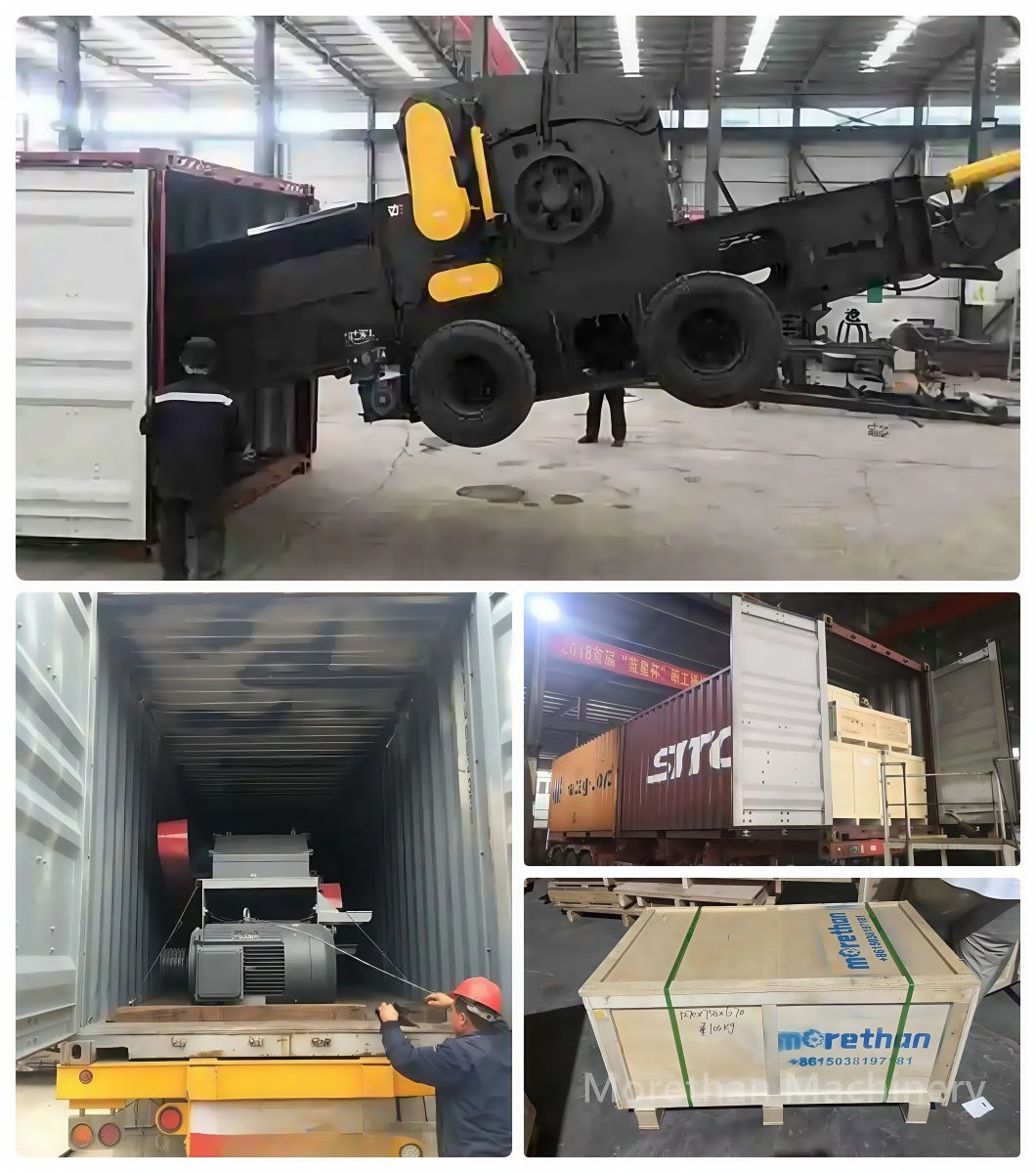

Delivery site
