Screw oil press
6YL screw oil press is a new type of screw oil press developed by Henan Morethan Machinery Co., Ltd., which improves the performance of the original machine, and at the same time uses a new gearbox to prolong the service life and reduce energy consumption.
Product features:
1. The wearing parts are made of high-quality steel after carburizing heat treatment, which prolongs the service life and reduces the user’s use cost and maintenance time.
2. A new large-module helical gear box is adopted, which improves the transmission efficiency and reduces the energy consumption.
3. The lengthened press chamber design prolongs the press time and improves the oil output efficiency.
4. Perfect pre-factory grinding and testing procedures improve the usability of the oil press.

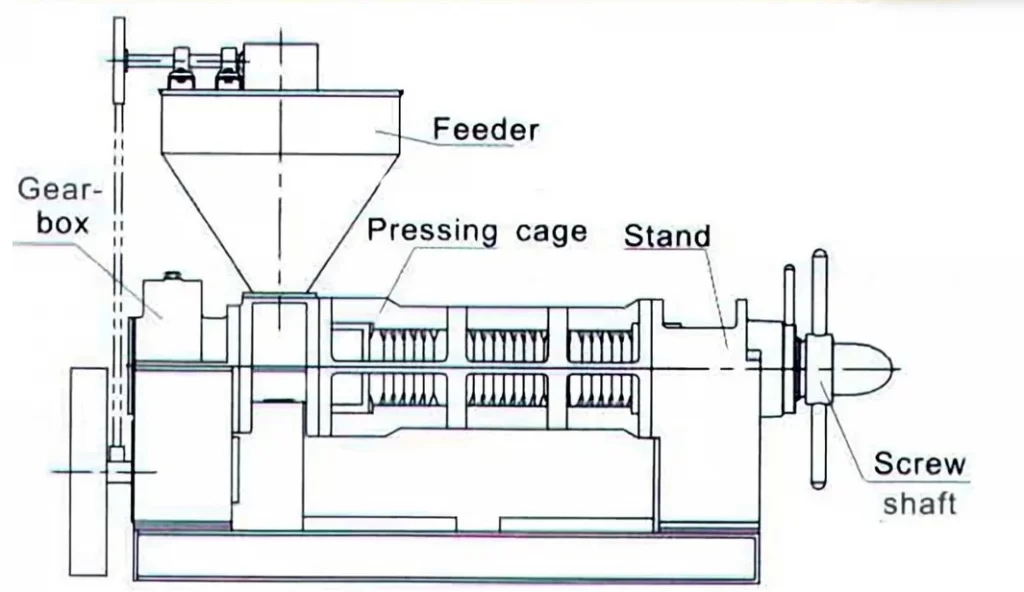

Working principle of 6YL screw oil press:
Feeding stage: raw materials enter the press chamber from the hopper.
Extrusion stage: the extrusion screw rotates and continuously pushes the blank inward for extrusion. Because the diameter of the screw increases gradually and the pitch decreases gradually, the friction and relative movement of the blank in the pressing chamber are caused, and the pressing effect is enhanced.
Oil squeezing stage: The heat generated in the squeezing process is helpful to promote the change of protein heat in the green body, destroy colloid, increase plasticity, reduce viscosity, and make oil easier to extrude. The squeezed oil flows out from the gap of the press chamber.
Residue treatment: the residual oil residue after pressing is discharged from the press chamber, and can be used as fertilizer after treatment.
| Model | Motor | Capacity | Voltage | Package Size | Weight |
| 6YL-68 | 5.5kw | 40-60kg/h | 380V 50Hz, three-phase | 90*45*85cm | 220kg |
| 6YL-80 | 7.5kw | 80-130kg/h | 132*54*102cm | 340kg | |
| 6YL-95/100 | 11kw | 130-200kg/h | 220*55*76cm | 630kg | |
| 6YL-120-1 | 15kw | 250-350kg/h | 240*56*76cm | 680kg | |
| 6YL-130 | 18.5kw/22kw | 380-500kg/h | 198*68*146cm | 720kg | |
| 6YL-165/160 | 30kw | 700-850kg/h | 220*65*90cm/105*83*75cm | 1300kg |

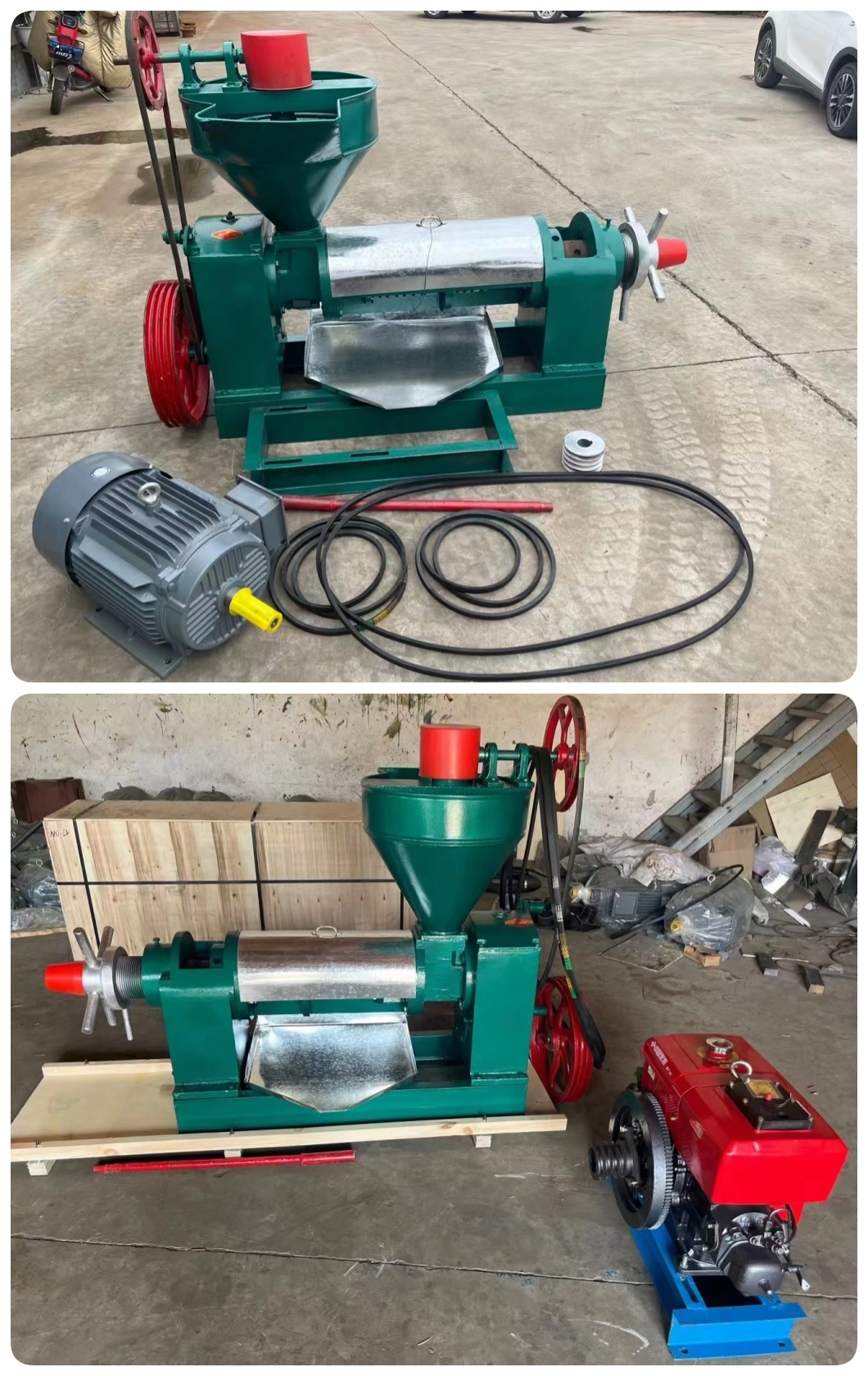

The screw oil press can be used with an electric motor or a diesel engine.

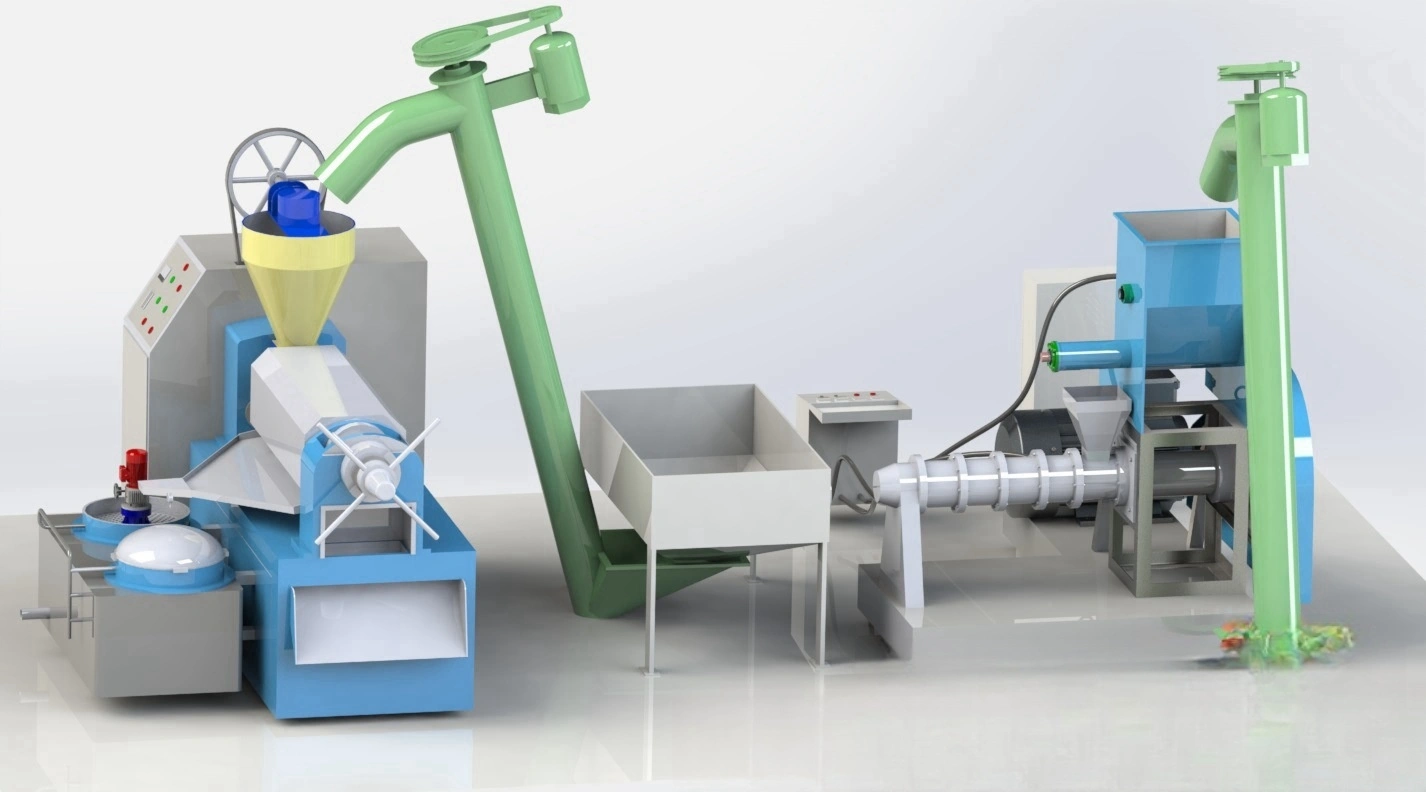

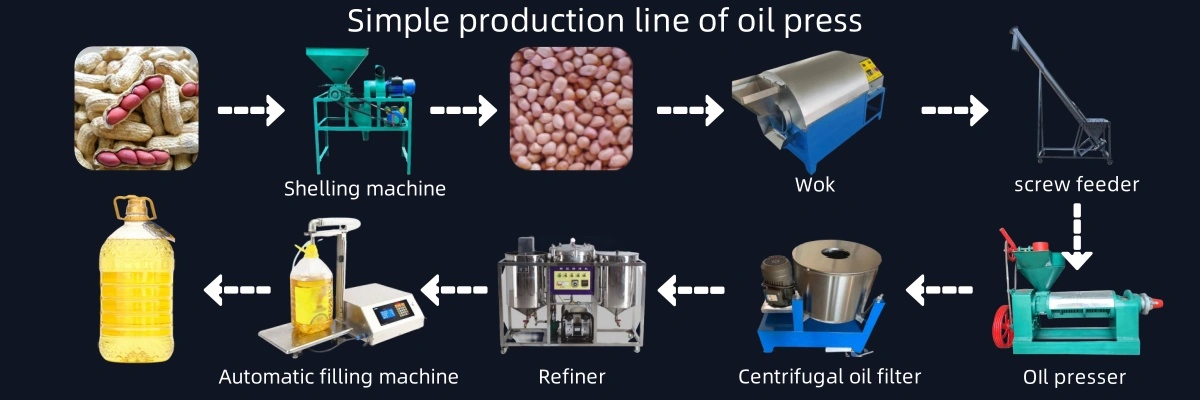

Production line combination
Raw materials used

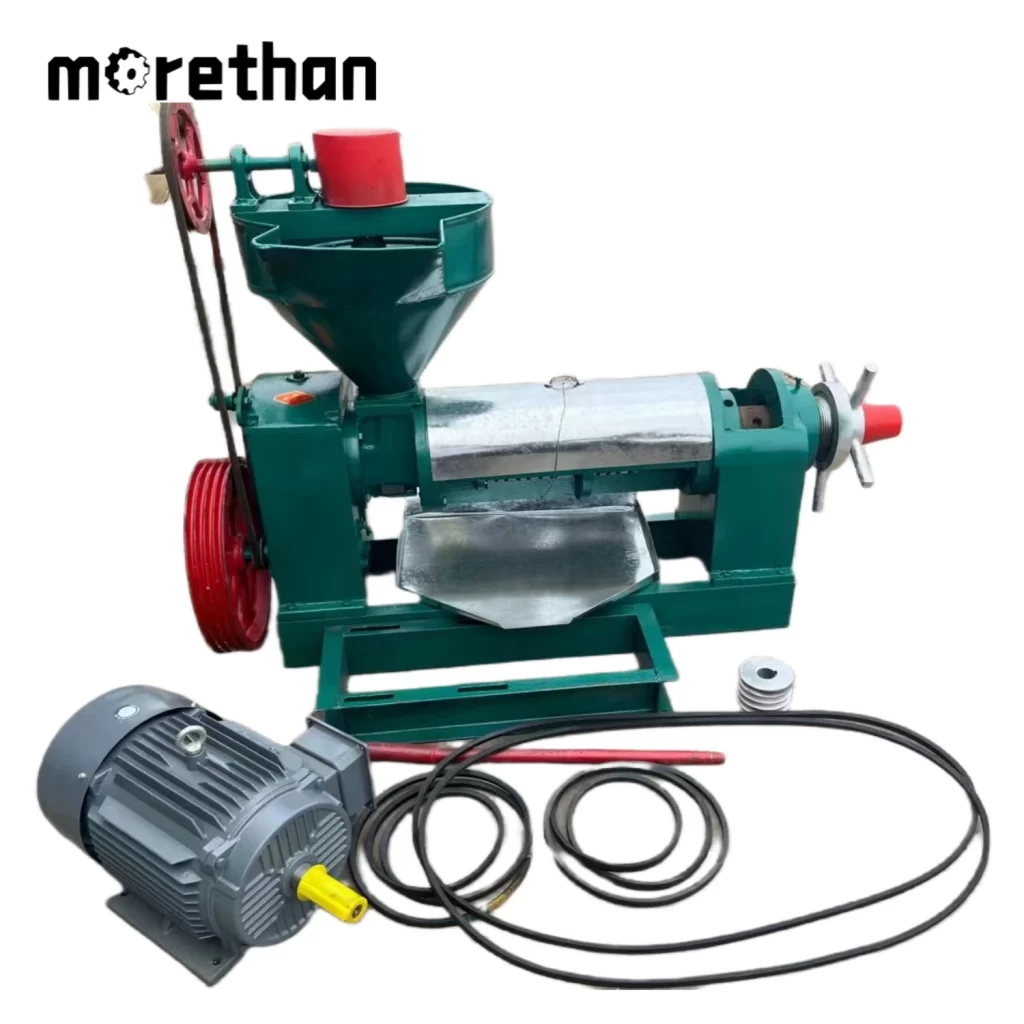

Product Details

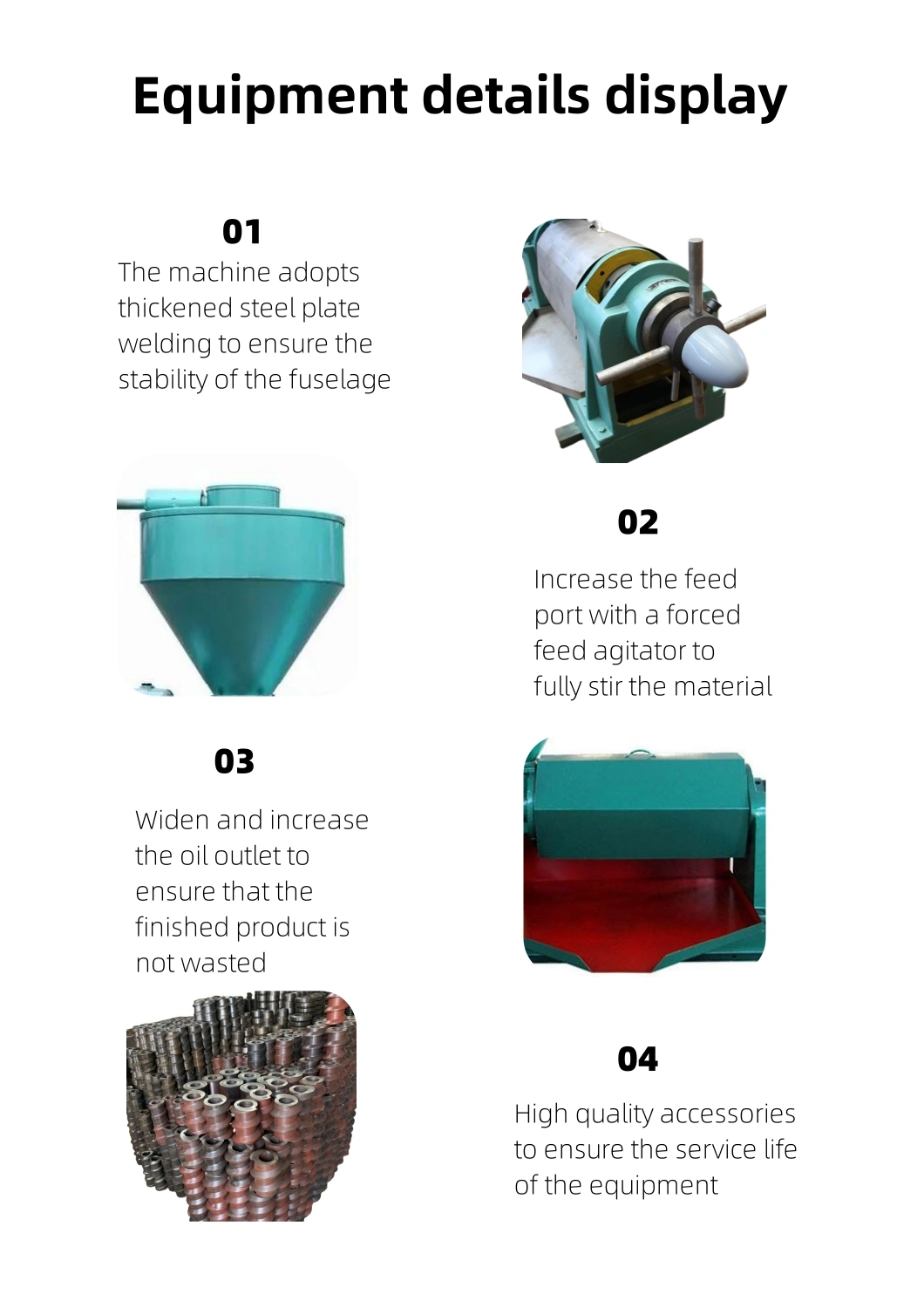

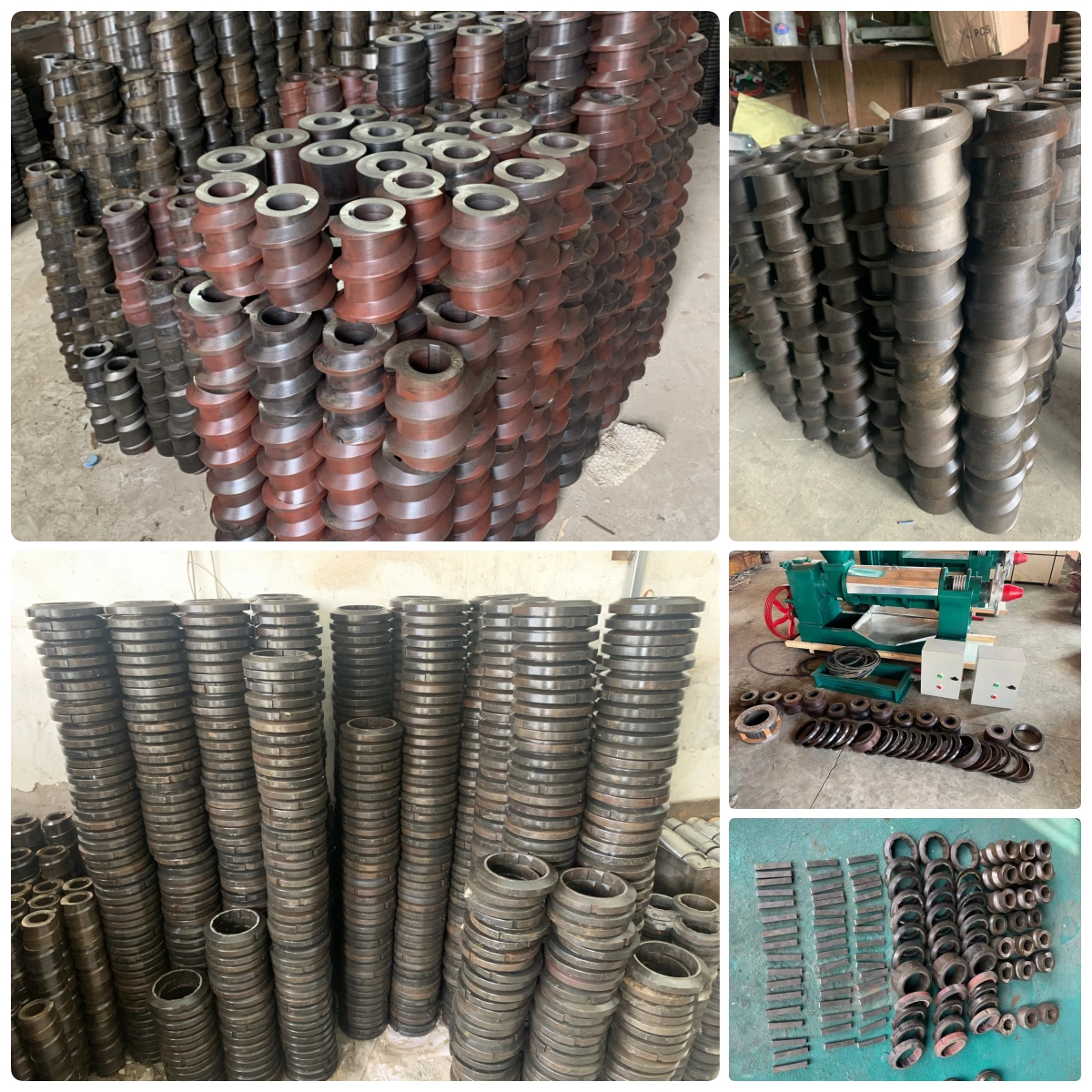

Accessories details
Shipping display
