Flat‑Die Pellet Machine

Biomass Flat Die Pellet Mill Sawdust Straw Biomass Pellet Production Machine MORETHAN

Equipment Introduction

Biomass Flat Die Pellet Machine

The biomass flat die pellet machine is a biomass energy preprocessing device. It primarily utilizes solid biomass waste materials such as corn stalks, rice straw, peanut shells, corn cobs, cotton stalks, soybean stalks, rice husks, weeds, branches and leaves, sawdust, bark, and carbon powder as raw materials. Through crushing, pressurizing, densifying, and molding, it produces fine, rod-shaped solid pellet fuel. The raw material density before production is generally around 0.6-0.8, while the density of the pellets after molding is greater than 1.1, making them extremely easy to transport and store, and significantly improving combustion performance.

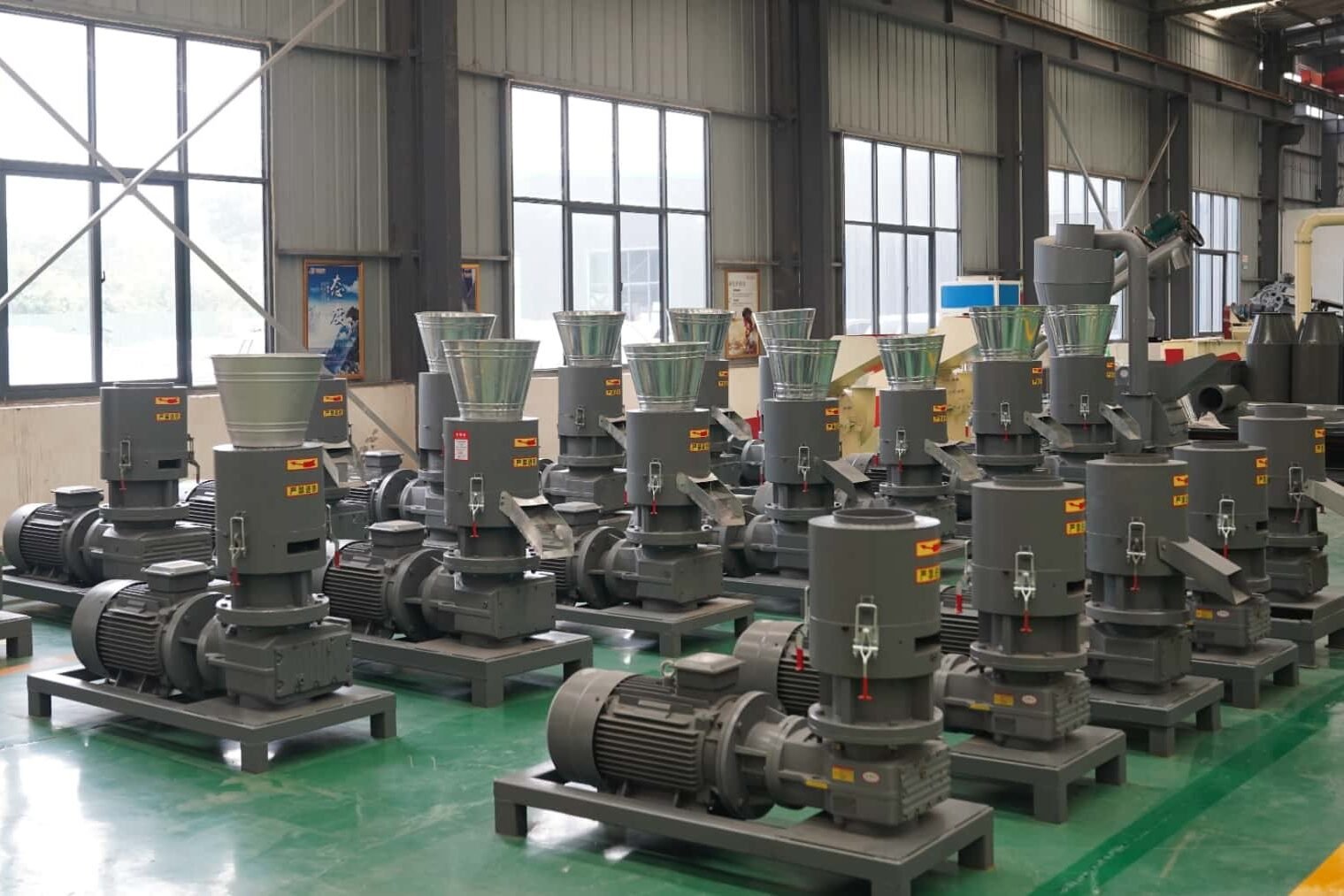

Flat die biomass pellet mill for wood pellet production

Model	Capacity(kg/h)	Powe(kw)	Weight(kg)	Size(mm)
210	60-100kg/h	4kw	210kg	900550950mm
260	100-200kg/h	15kw	350kg	11006501400mm
300	200-300kg/h	22kw	550kg	13106101510mm
400	400-500kg/h	30kw	850kg	14607101710mm
450	600-700kg/h	45kw	1150kg	16107101710mm
500	700-800kg/h	55kw	1800kg	18008001900mm

Source manufacturer, large quantity and favorable price.
Price includes: motor, die(3mm/4mm/5mm/6mm), pressure roller. Delivery time: within 7 days.
Warranty period: 2 years

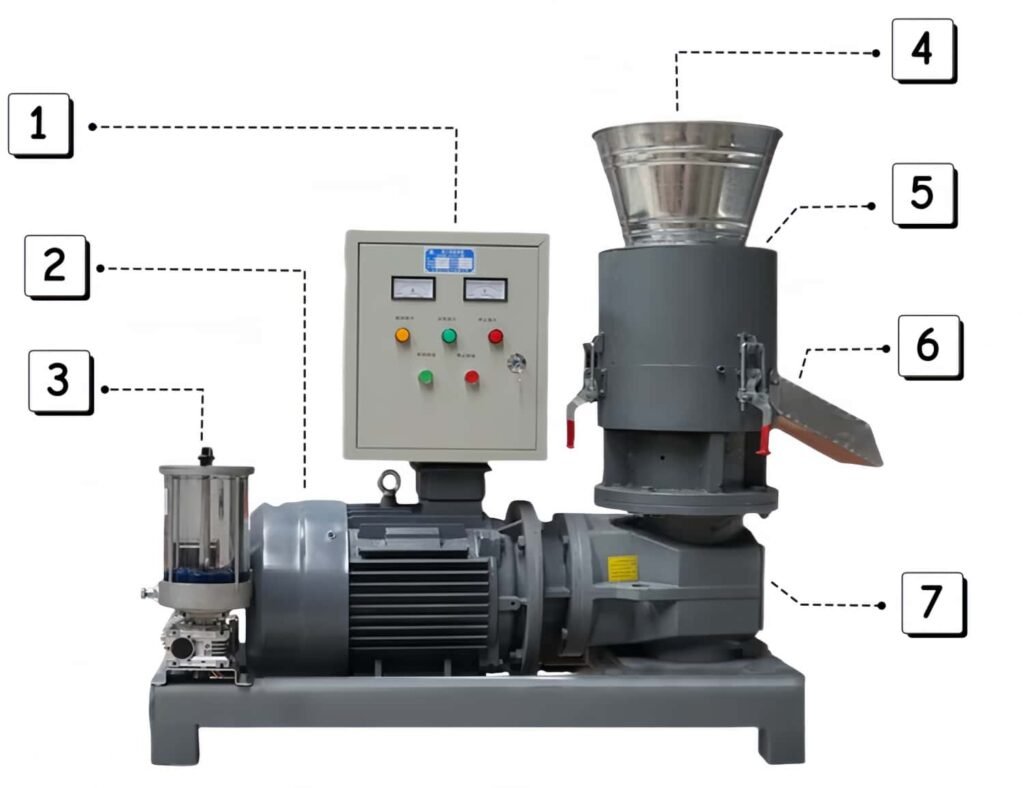

Biomass flat‑die pellet mill structure diagram, machine parts introduction

1.Electric control cabinet

2.High-performance pure copper motor

3.Automatic lubrication system

4.Feed port

5.Pelletizing silo

6.Finished product outlet

7.Variable speed reducer

Working principle and advantages

The core of the process is to use mechanical pressure to force loose raw materials (for example, wood chips) through a perforated flat die, densifying them into cylindrical pellets. The entire process can be broken down into the following key steps:
1. Feeding and Distribution: Raw materials, dried to an appropriate moisture content (typically 10%-15%), are fed into the machine’s feed chamber via a feeding system (such as a screw conveyor, gravity feed hopper, or a forced feeder with agitation).
2. Compression: Actively rotating rollers compress the raw materials. Under high pressure (radial pressure + shear force) and frictional heat (60-100°C), the lignin (a natural binder) softens and the fibers plasticize and deform. The material is then forced into the vertical holes of the flat die.
3. Pellet Cutting: The continuous extruded rods are cut into pellets by a rotating cutter at the bottom.
Its core advantages lie in its relatively simple structure, strong adaptability to wood chip raw materials, intuitive and convenient operation and maintenance, and low investment and operating costs on a small and medium scale.

Based on different site power‑supply conditions, we provide flat‑die pellet mills in three drive versions to match your actual working scenarios. Whether you have stable grid power, a tractor available on‑site, or no electricity access at all, you can pick the most suitable unit below:

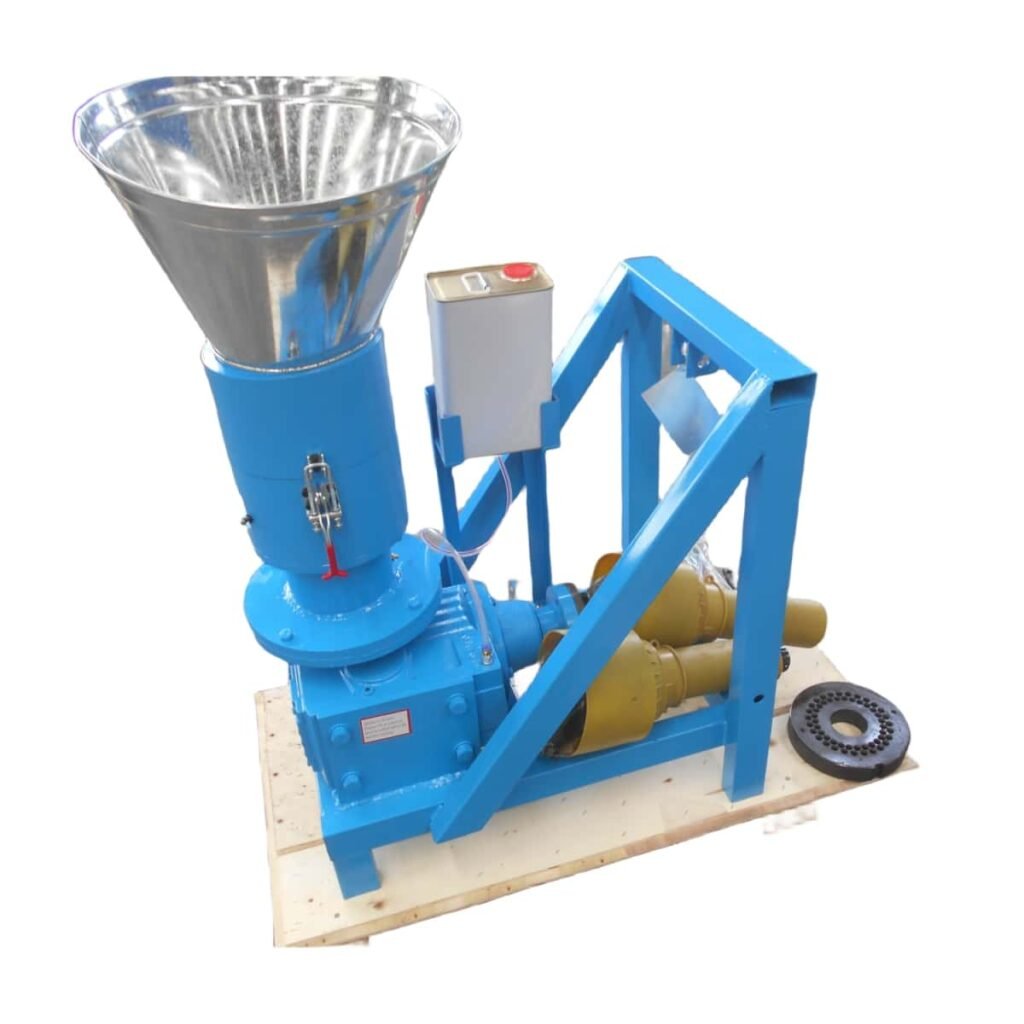

PTO driven flat‑die pellet mill connected with farm tractor — **PTO tractor‑driven model**

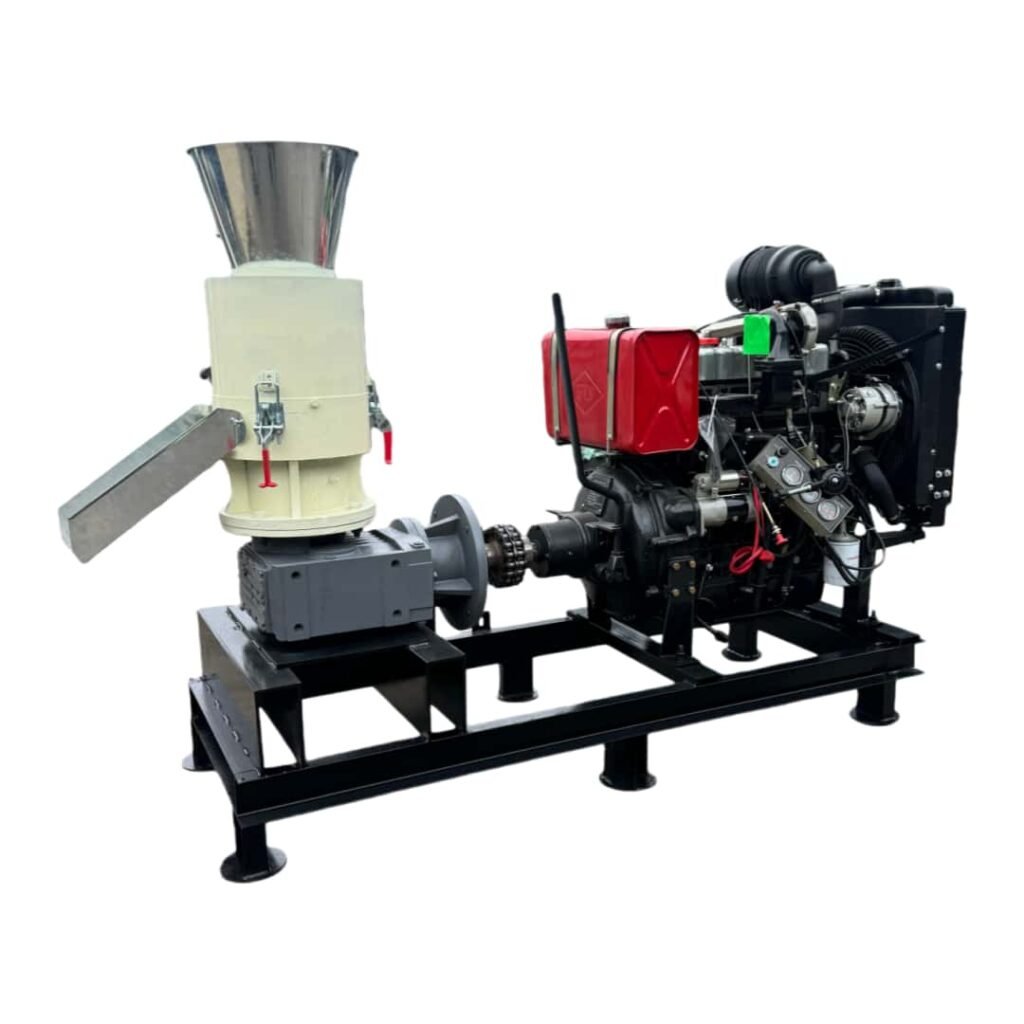

Diesel engine driven flat‑die biomass pellet mill, no electricity needed — **Diesel engine driven model**

Raw Materials & Final Pellets

Our flat‑die biomass pellet mill works with a wide variety of raw materials, including wood blocks, coconut shells, straw, corn cobs, bamboo and cotton stalks. Regardless of different feedstock, it delivers stable, well‑shaped high‑density finished pellets. It is ideal for small‑scale farms, rural workshops and off‑grid production sites.

Biomass raw materials and finished fuel pellets for flat die pellet mill — **Various feedstock options and good‑quality finished pellets**

Customized combination

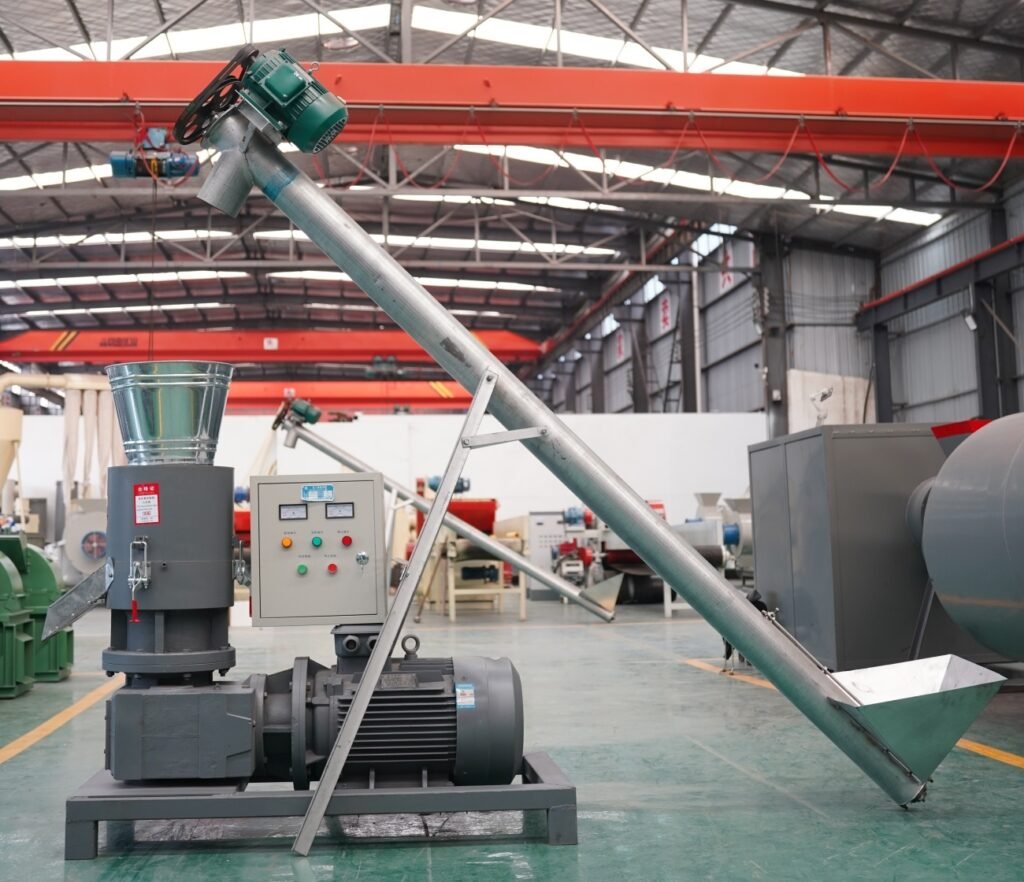

Our flat‑die pellet mill supports flexible system configuration. You can pair it simply with a screw feeder to build a basic production line, or expand into a full‑scale biomass pellet processing system by adding crushing, drying, pelleting, cooling and packaging units.

This modular setup fits perfectly for small‑to‑medium pellet plants. It helps you gain solid returns with lower upfront investment, and serves as a highly cost‑effective entry‑level solution for biomass energy industrial projects.

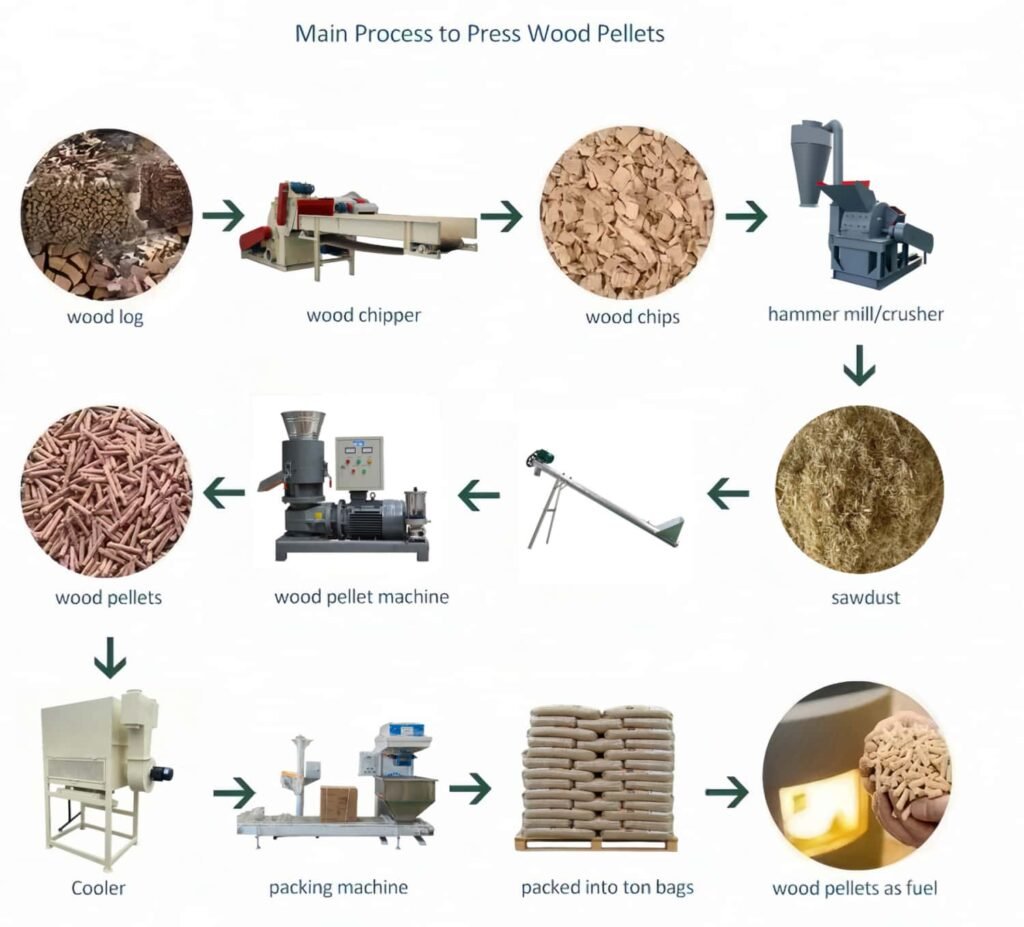

Modular customized biomass pellet production line equipment layout, crushing drying pelleting cooling packaging machines

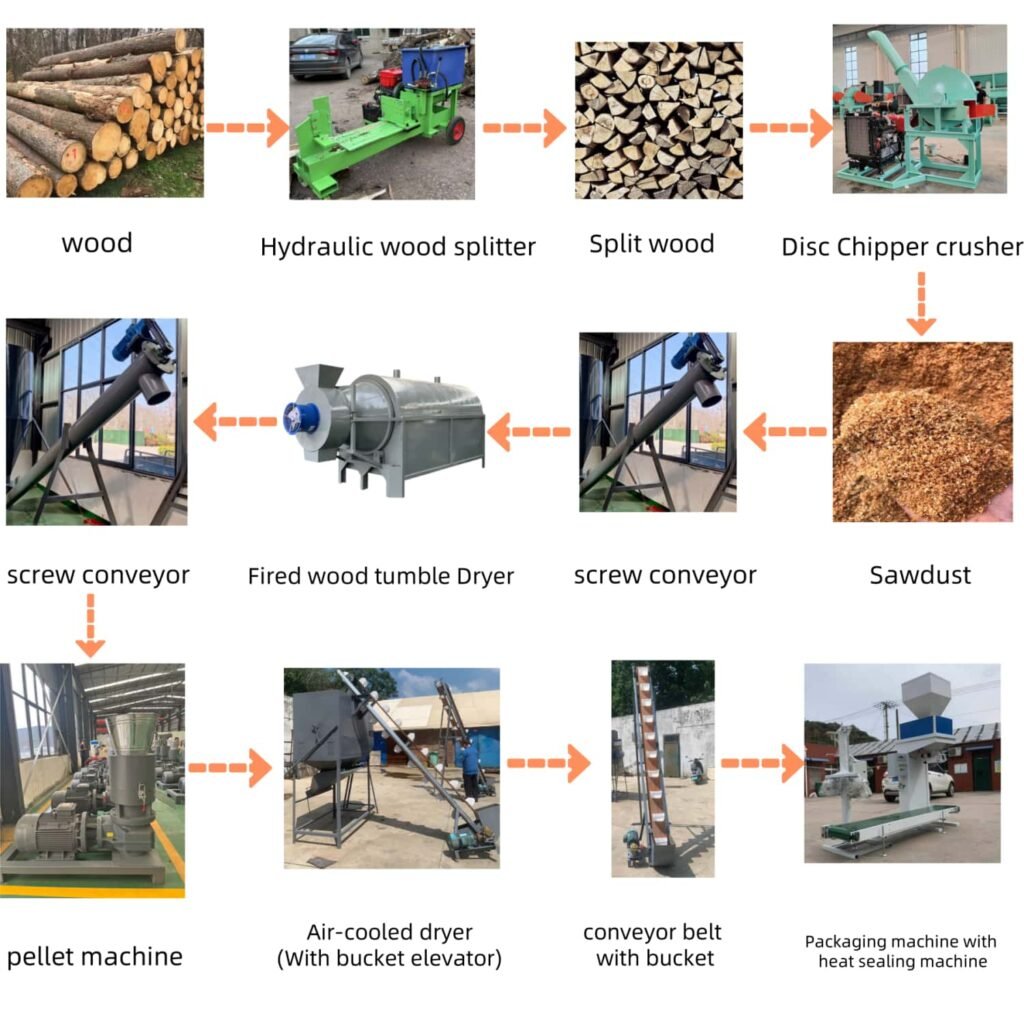

Complete wood pellet production workflow diagram, from raw wood log to final packed fuel pellets
