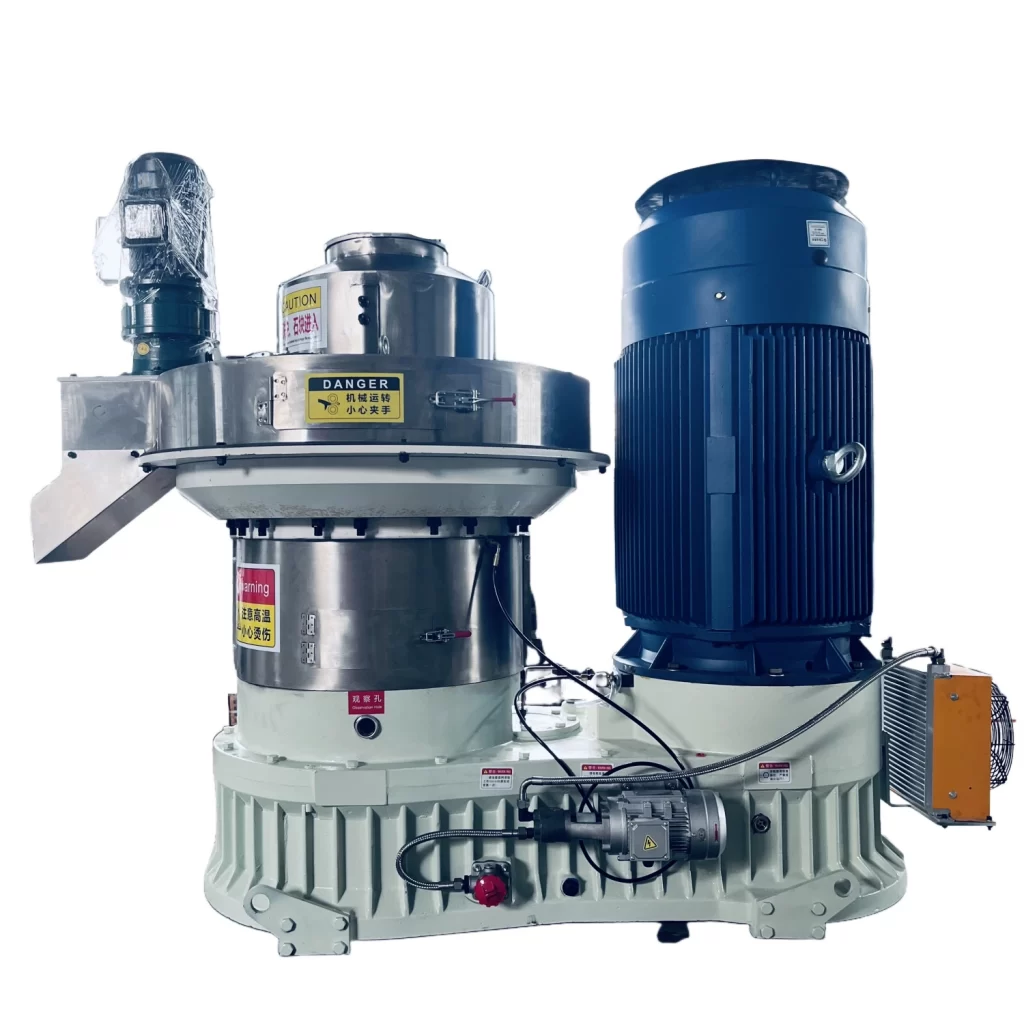

Sawdust represents one of the most accessible biomass raw materials for renewable fuel production. Converting loose sawdust into uniform, high-density fuel pellets helps wood mills, biomass factories and waste recycling facilities boost profit margins while realizing green waste reuse. At the heart of mature sawdust pellet production lines sits the ring die biomass pellet mill, the preferred pelleting device for medium and large-scale continuous pellet manufacturing.

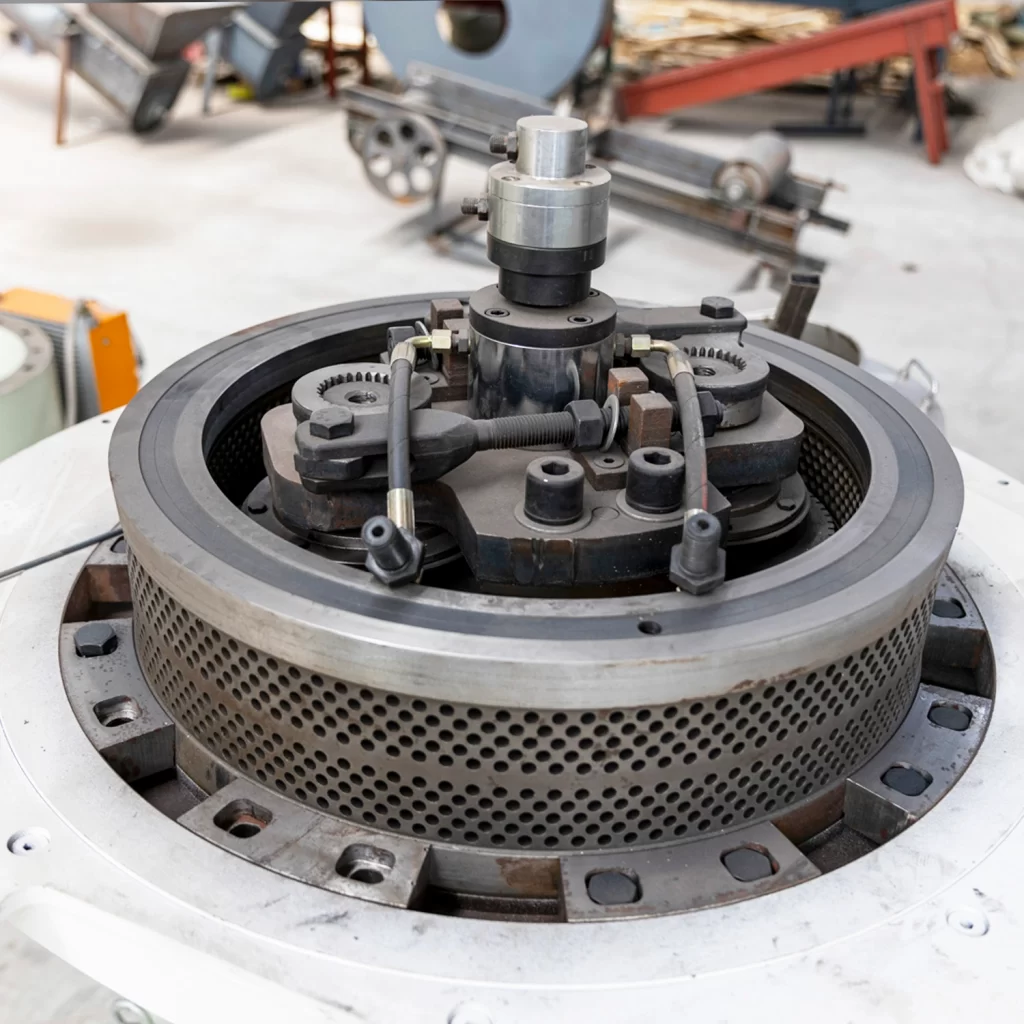

Different from small flat die pellet machines designed for intermittent production, vertical ring die pellet mills adopt an inward extrusion structure. After sawdust is crushed and dried to the optimal moisture range of 12%-17%, materials are evenly sent into the pelleting chamber. Press rollers squeeze sawdust through precision holes on the alloy ring die. High friction pressure generates heat to activate natural lignin inside wood, binding particles tightly without extra chemical adhesives. Extruded cylindrical strips are cut into finished pellets of required length by built-in cutters.
For sawdust fuel production, ring die pellet mills carry obvious competitive advantages.
First, stable high output. Units from Morethan Machinery cover hourly capacity ranging from 1 ton up to 6 tons, supporting round-the-clock continuous operation to meet mass production demands.

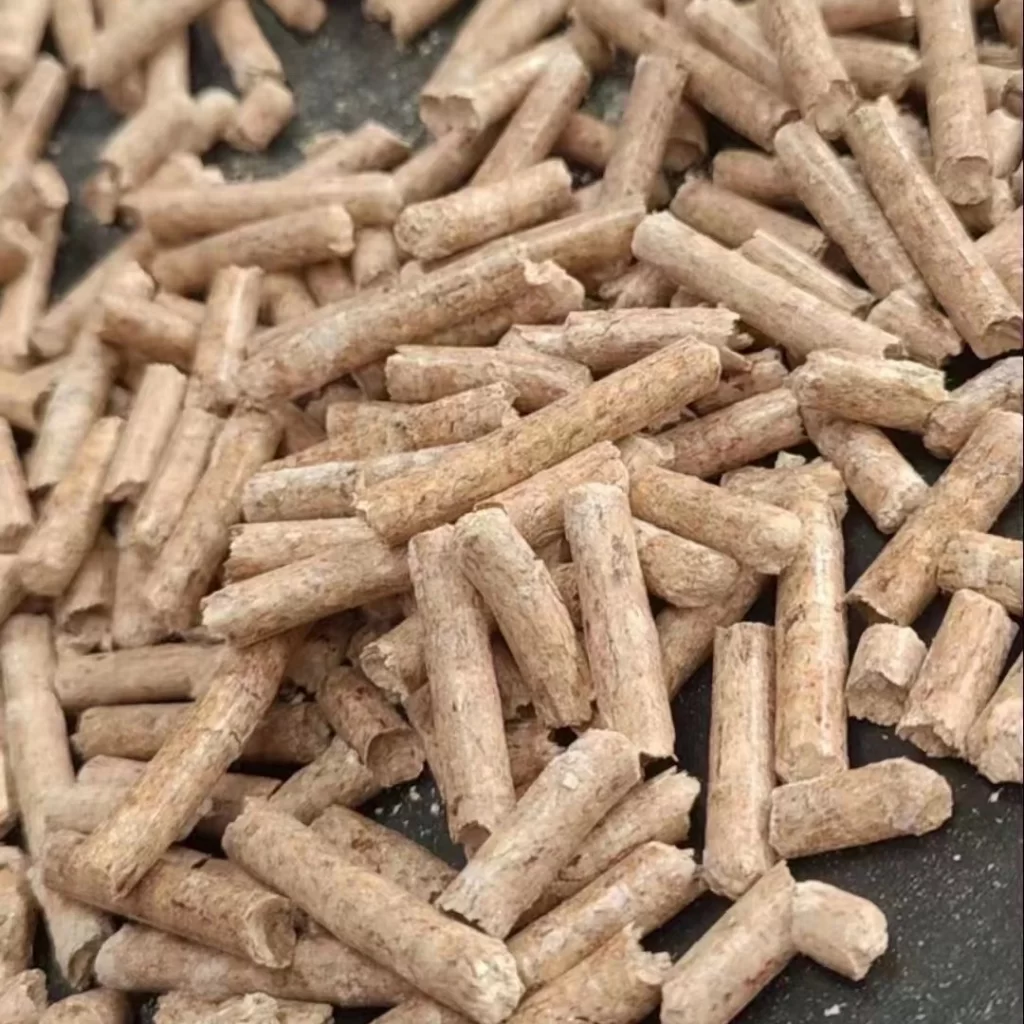

Second, consistent pellet quality. Uniform compression ensures finished pellets feature stable density, low breakage rate and high combustion efficiency, perfectly satisfying standards for domestic heating, industrial boilers and export wood fuel markets.
Third, strong adaptability. By replacing ring dies with different hole diameters, the machine can produce 6mm, 8mm, 10mm fuel pellets to match various customer requirements. Wear-resistant alloy ring dies and roller shells effectively extend service life when processing abrasive sawdust and wood residues.
Many new investors mistakenly choose flat die machines for large sawdust processing projects only to face frequent shutdowns, low yield and fast wearing spare parts. Flat die equipment fits small batch trial production, while ring die pellet mills deliver lower comprehensive operation cost for long-term commercial sawdust pellet businesses.

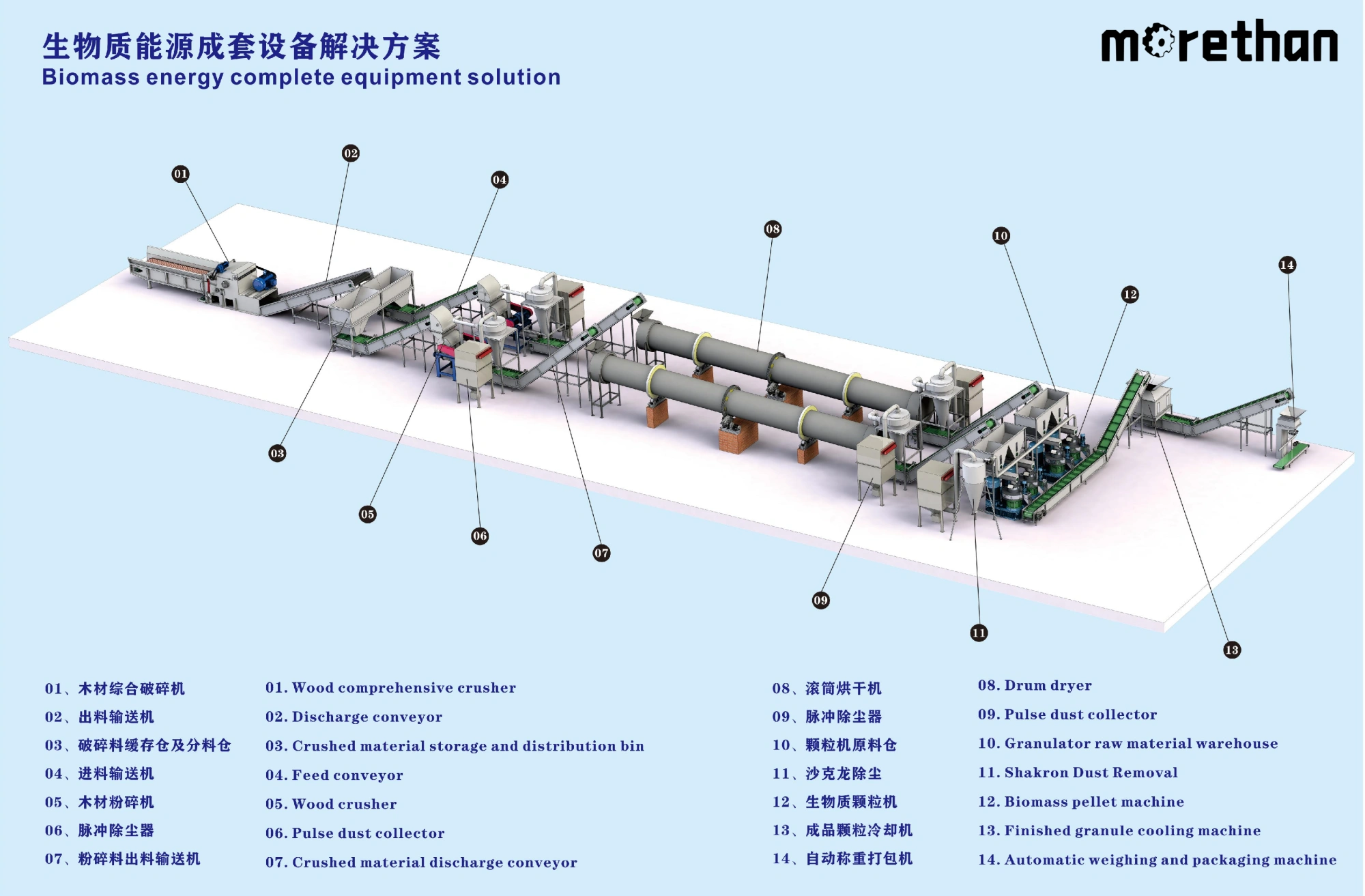

A complete sawdust pellet line normally includes wood crusher, rotary dryer, ring die pellet mill, pellet cooler and packing machine. The matching degree between dryer moisture control and ring die pelleting performance directly decides final output and finished pellet quality. Improper material moisture easily leads to pellet cracking or machine blockage.
If you plan to build a sawdust fuel pellet plant, selecting a reliable ring die biomass pellet mill is your decisive investment step. Morethan Machinery supplies complete customized pellet production solutions, including equipment selection, layout design, on-site installation guidance and long-term spare parts support.
